Description

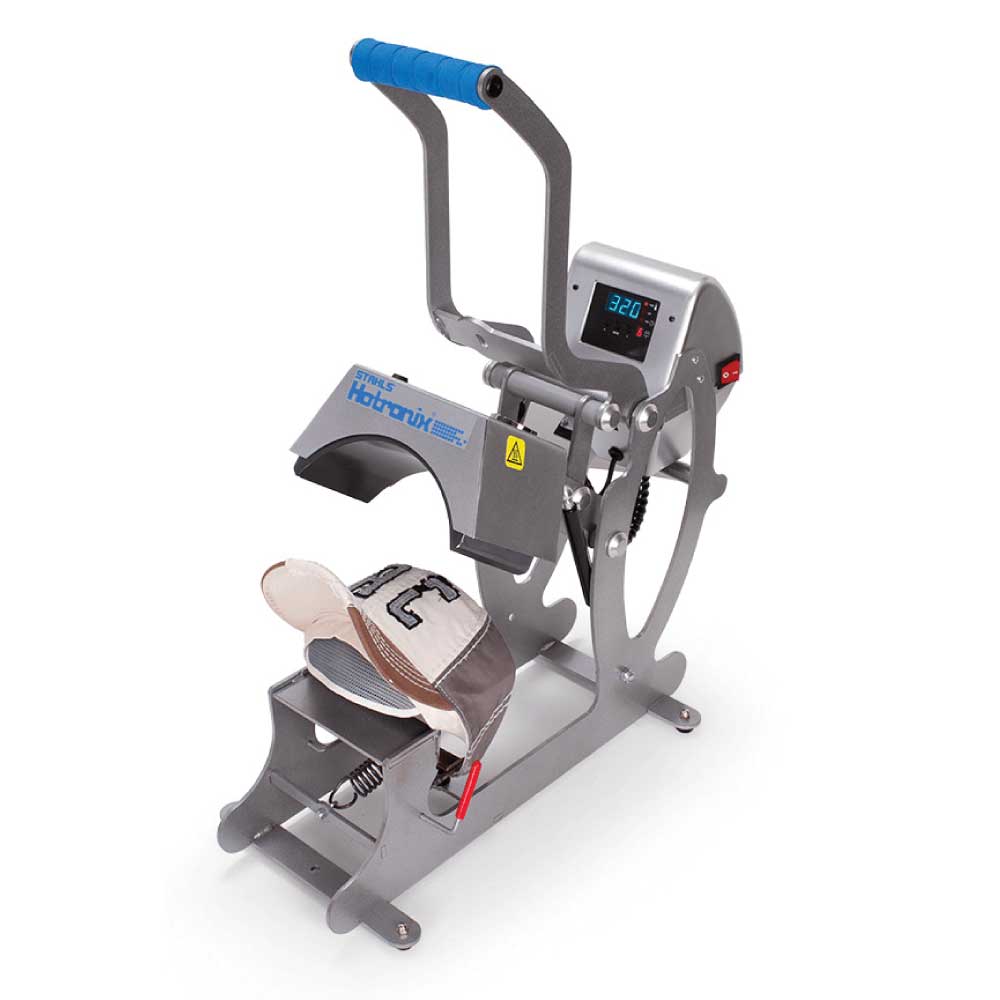

Hotronix Cap Heat Press

This automatically opening cap heat press from Hotronix allows your customers to complete uniform customization. As a result, it’s ideal for baseball and softball caps, fan gear, spirit clothing, mementos, and more.

With this simple-to-use cap heat press, which can also be used to embellish caps of different sizes, you may increase add-on sales and decorate the entire uniform.

• The innovative magnetic auto-open mechanism guards against excessive use.
• The hold-down tool makes the surface smooth and secures the cap.
• Moreover, Decorate hats of many sizes, shapes, and styles using the optional platens that are offered.

Ideal solution for heat applying logos on caps

• Made to adorn hats of different sizes
• You can multitask without applying yourself too many thanks to the auto-open feature.
• Digital readouts of the time, temperature, and pressure
• Easily portable due to its small size.
• Additionally, for reliable printing, an easy-to-read digital time, temperature, and pressure display.
• Unique magnetic help makes locking down simple and reduces wrist and shoulder fatigue
• Individual time parameters can be pre-set for two-step applications using Twin Timer.
• Pressure Adjustment ensures uniform, edge-to-edge heat, and pressure, as well as a space-saving clamshell design, under the center.
• 13.6 kg in actual weight
• 18.5 kg Shipping Weight
• Size: 53.3 by 25.4 by 45.7 cm
• Dimensions for Shipping: 66.4 x 38.1 x 53.3 cm

Hotronix Premier Warranty

• Lifetime Warranty on Heating Element
• 5 yr on Framework
• 2 yr on Circuit board
• 1 yr parts/labor

Additional Features

• Patented Magnetic Auto Open Feature.
• 3/4″ thick upper platen with non-stick coating.
• Patented Magnetic Assist LockDown.
• 3/8″ Silicone pad.
• Quick-change 3.5″ x 6″ lower platen.
• Platinum RTD heat sensor.
• Cast-in tubular heating element every 2″ to eliminate cold spots.
• Generates maximum pressure with less effort.
• Under-center pressure adjustment.
• UL/ULC/CE/ROHS approved.
• Temp. range 205? – 420?F.
• ?F or ?C available.
• Electrical Options:
  120 v; 4 amps; 500 w
  240 v; 2 amps; 500 w
• Must have designated circuit breaker
• Space-saving clamshell design.

• Actual Weight: 13.6 kg
• Shipping Weight: 18.5 kg
• Dimensions: 53.3 x 25.4 x 45.7 cm
• Shipping Dimensions: 66.4 x 38.1 x 53.3 cm
