Hotronix Air Fusion Heat Press Table top Version

0 out of 5

The Hotronix Air Fusion is the only auto-open, auto-swing heat press of its kind, with patented, innovative features designed to increase production volume and decrease operator fatigue

  • Intelligent troubleshooting and self-diagnosis of the press
  • Ability to generate printing and production statistics to check productivity
  • 240 V, 15 Amp, 3500 W – Size: 40cm x 50cm
  • Easy to install interchangeable platens
  • Temperature adjustable up to 220C? (430F?)
  • Automatic pressure adjustment, Automatic Timer.
Availability: 1 in stock SKU: STH-XRF Category:
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first Register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in

Description

Hotronix? Air Fusion? Heat Press Table-top Version

The air-powered Air Fusion IQ heat press offers a 16″ x 20″ heated upper platen and swing motion, making it ideal for high-volume shops, specialized decorators, and direct-to-garment printing. Additionally, the workplace is kept heat-free thanks to the press’s air-powered design. Models with a tabletop or a pedestal stand that may be adjusted in height are available.

Self-diagnosis and troubleshooting capabilities have been built into the brand-new Fusion IQTM controller.
The new Hotronix Online Portal allows users to monitor performance and produce information regarding productivity from any location.

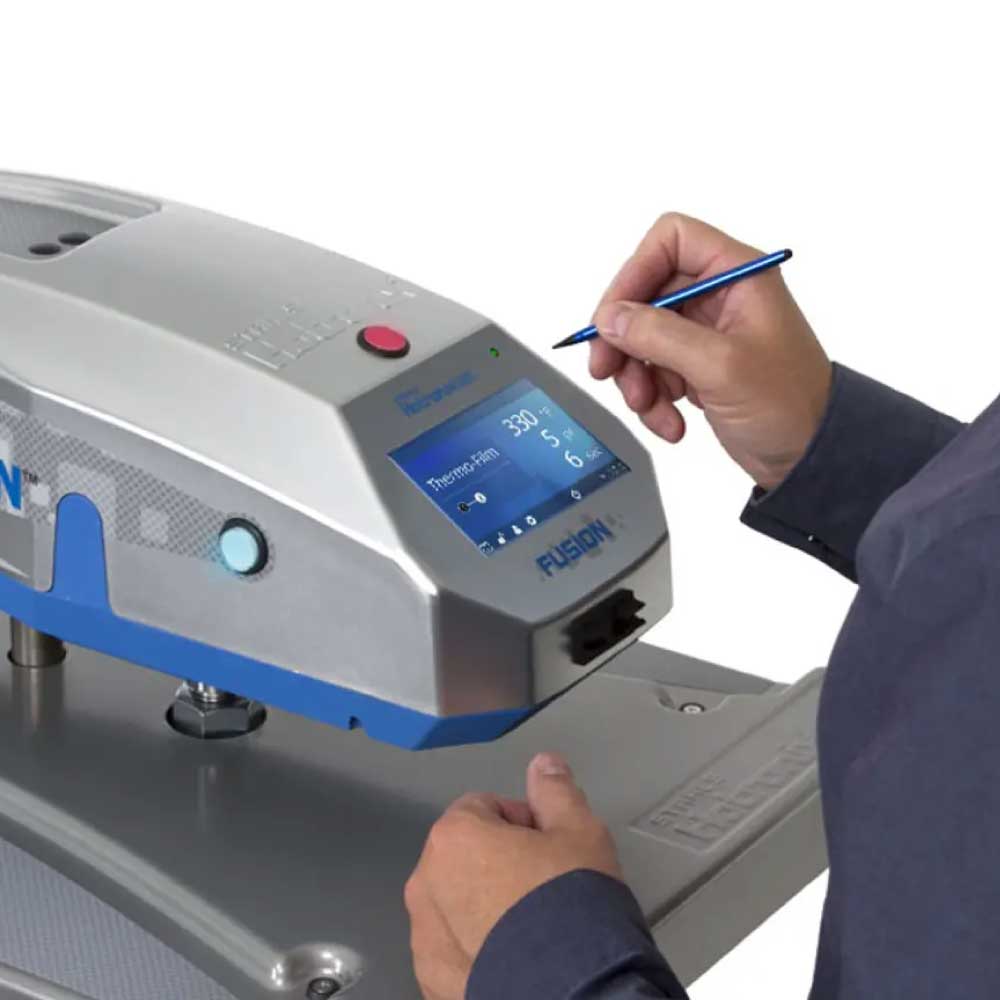

The screen has a new larger size, greater resolution, and enhanced responsiveness to touch

The IQ-Board of the Fusion series offers many new features besides a larger display and improved sensitivity when adjusting the press.

  • Intelligent troubleshooting and self-diagnosis of the press
  • Ability to generate printing and production statistics to check productivity
  • 240 V, 15 Amp, 3500 W
  • 40cm x 50cm
  • Easy to install interchangeable platens
  • Temperature adjustable up to 220C? (430F?)
  • Automatic pressure adjustment, Automatic Timer.

Application

Prepare to Print

To begin the heat application, start by verifying that you have the proper settings on the Home Screen.Air-Fusion Operators Manual

  • Select the preset material application.
  • Manually enter the temperature and time for the selected material. Adjust pressure accordingly.

When desired settings are reached, you can begin the heat application.

When using the Swing feature (4.1), swing the heat plate outward
and position the garment and design.

Swing the platen back into position and press both print buttons
to lower the platen and heat apply (4.2).

The Home Screen will initiate a countdown and signal when to lift
the platen of the garment.

Swing or pull the heat plate and proceed according to the application instructions.

Download File Download: Operation Manual



Air-Fusion Heat Press Operators Manual





Universal Features

  • Made in the USA
  • Cast-in tubular heating
  • Powder coated finish
  • UL/ULC/CE

Packaging Details

  • Item weight: 68 kg.
  • Pcs in Carton Box: 1
  • Carton Box Weight: 76 kg
  • Carton Box Size: 94 x 63 x 68 cm

Warranty by Hotronix

Heating Element – Lifetime
Framework – 5 years
Circuit Board – 2 years
Parts & Labor – 1 year

Prepare to Print

To begin the heat application, start by verifying that you have the proper settings on the Home Screen.Air-Fusion Operators Manual

  • Select preset material application.
  • Manually enter the temperature and time for the selected material. Adjust pressure accordingly.

When desired settings are reached, you can begin the heat application.

When using the Swing feature (4.1), swing the heat plate outward
and position the garment and design.

Swing the platen back into position and press both print buttons
to lower the platen and heat apply (4.2).

The Home Screen will initiate a countdown and signal when to lift
the platen of the garment.

Swing or pull the heat plate and proceed according to the application instructions.

Download File Download: Operation Manual

Air-Fusion Heat Press Operators Manual

Additional information

Weight 68 kg
Dimensions 40 × 50 cm
HS Code

8451300000

Country of Origin

USA
