Hotronix? Auto Clam Heat Press

0 out of 5
  • Actual Weight: M Size: 26.7 kg | B Size: 39.4 kg
  • Shipping Weight: M Size: 32.6 kg | B Size: 45.3 kg
  • Dimensions:
    16 x 16 model: 28″ x 17″ x 17″ | 16 x 20 model: 29″ x 17″ x 17″
  • Shipping Dimensions: 36″ x 25″ x 21″ for all models

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board, and 1 yr parts/labor
SKU: STH-STX Category:
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first Register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in


Clear

Description

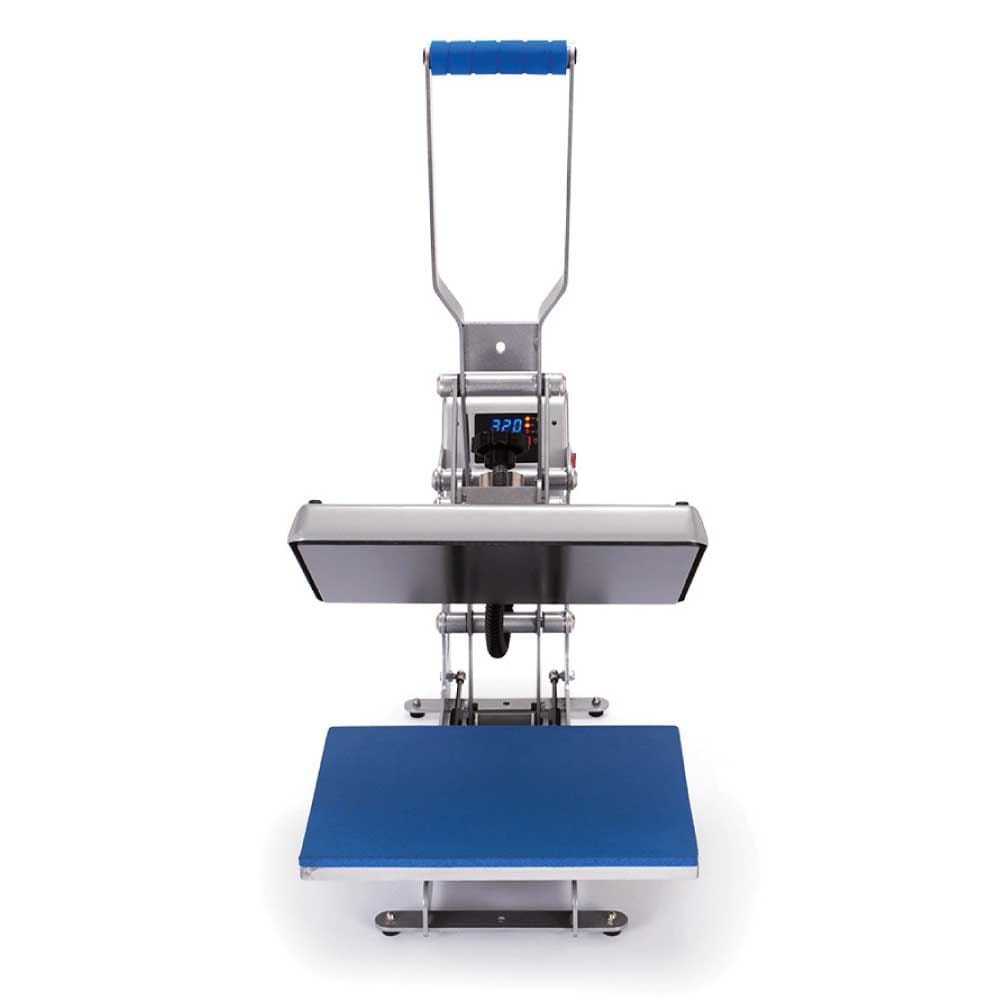

Hotronix? Auto Clam Heat Press

Multi-task while avoiding over-application and ruined garments with this auto-open clam heat press. Interchangeable platens allow you to heat print a variety of items of different shapes and sizes.
So to make sure you’re getting a Hotronix?, look for the blue!

You won’t find a more user-friendly than the Auto-open clam heat press

  • Opens automatically, so it prevents over-application and scorching
  • The clamshell design saves space
  • Wide opening that allows easy layout
  • Digital time, temperature, and also pressure readouts
  • User-friendly therefore most popular heat press
  • Compatible with the Heat Press Caddie? and also
  • Compatible with select Quick Change Platens

Download File? Download the Platen Compatibility Guide

Features

  • Patented Magnetic Auto Open Feature.
  • 3/4″ thick non-stick coated upper platen.
  • Patented Magnetic Assist LockDown.
  • Interchangeable lower platens (optional).
  • Platinum RTD heat sensor.
  • Cast-in tubular heating element every 2″ to ensure the absence of cold spots.
  • Over-center pressure adjustment.
  • UL/ULC/CE/ROHS approved.
  • Temp. range 205 – 420 F.
  • F or C available.
  • 11 x 15 Electrical Options:
    120 v; 8.3 amps; 1000 w
    240 v; 4.5 amps; 1000 w
  • Must have designated circuit breaker
  • 16 x 16, 16 x 20 Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w
  • Actual Weight:
    16 x 16: 26.7 kg
    16 x 20: 39.4 kg
  • Shipping Weight:
    16 x 16: 32.6 cm
    16 x 20: 45.3 kg
  • Dimensions:
    16 x 16 model: 28″ x 17″ x 17″
    16 x 20 model: 29″ x 17″ x 17″
  • Shipping Dimensions: 36″ x 25″ x 21″ for all models

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 years on Circuit board
  • 1 yr parts/labor

Operators Manual

Download File Download the Hotronix-Clam-Heat-Press-Operators-Manual

Features

  • Patented Magnetic Auto Open Feature.
  • 3/4″ thick non-stick coated upper platen.
  • Patented Magnetic Assist LockDown.
  • Interchangeable lower platens (optional).
  • Platinum RTD heat sensor.
  • Cast-in tubular heating element every 2″ to ensure the absence of cold spots.
  • Over-center pressure adjustment.
  • UL/ULC/CE/ROHS approved.
  • Temp. range 205? – 420?F.
  • ?F or ?C available.
  • 11 x 15 Electrical Options:
    120 v; 8.3 amps; 1000 w
    240 v; 4.5 amps; 1000 w
  • Must have designated circuit breaker
  • 16 x 16, 16 x 20 Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w
  • Actual Weight:
    16 x 16: 26.7 kg
    16 x 20: 39.4 kg
  • Shipping Weight:
    16 x 16: 32.6 cm
    16 x 20: 45.3 kg
  • Dimensions:
    16 x 16 model: 28″ x 17″ x 17″
    16 x 20 model: 29″ x 17″ x 17″
  • Shipping Dimensions: 36″ x 25″ x 21″ for all models

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 years on Circuit board
  • 1 yr parts/labor

Download File Download the Platen Compatibility Guide

Operators Manual

Download File Download the Hotronix-Clam-Heat-Press-Operators-Manual

Additional information

WeightN/A
DimensionsN/A
Size

Big, M

HS Code

39199000

Country of Origin

USA
