Description

CAD-CUT Premium Plus Heat Transfer Vinyls

With superior stretch and rebound, Premium Plus Vinyls was designed to keep up with the most strenuous movements while retaining its original shape. This low-temp material is the ideal choice when decorating heat-sensitive performance wear, and once the heat is applied has an extremely soft and lightweight feel.

Material Specifications

• Composition: Polyurethane (PU)
• Carrier: Frosted, Pressure-Sensitive
• Low Tack Thickness: 80-108 microns/.080-108mm
• High Tack Thickness: 92 microns/.092mm
• Stretch & Rebound: 5
• Washability: 50
• Safety: Low Tack CPSIA Certified, High Tack CPSIA Certified
• Laser cutter compatible

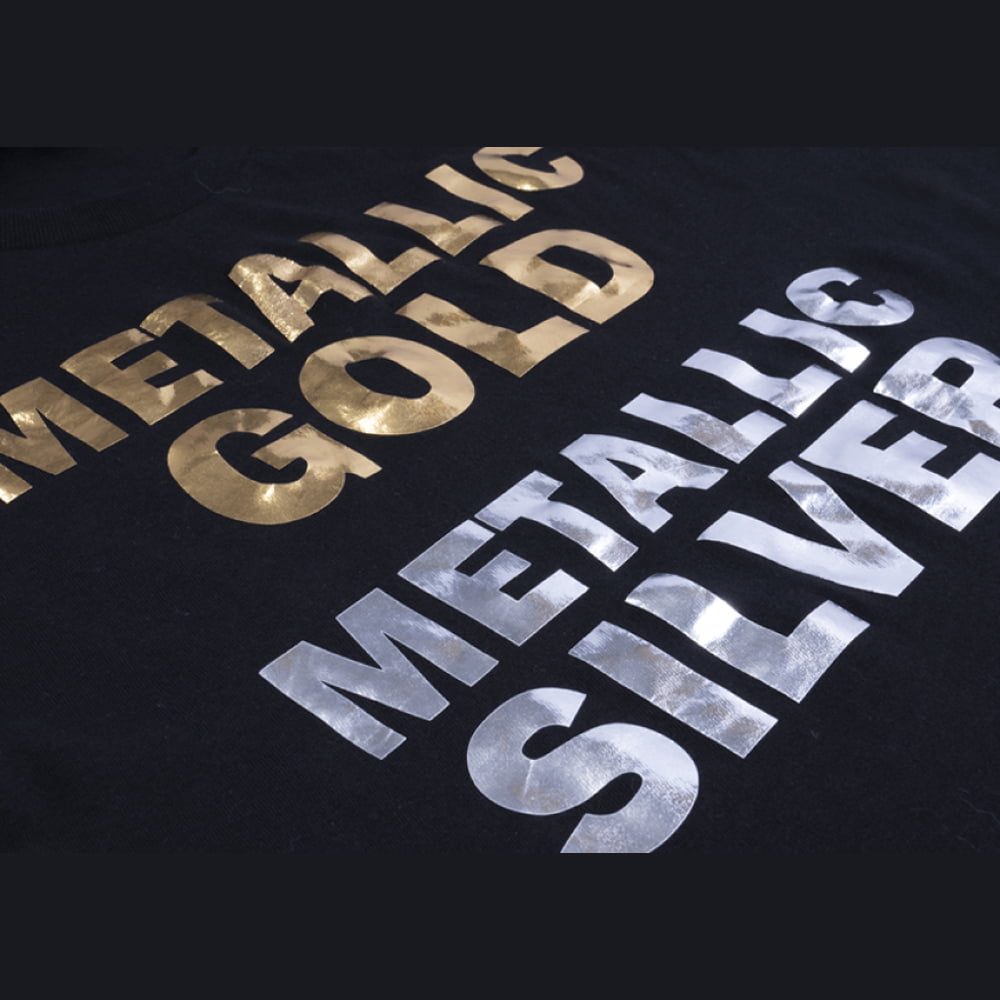

HD Video: How to Heat Press Metallic Premium Plus Vinyl | SKU: HTM-MT-PP

Low Tack Application Instructions

• Time: 8-12 Seconds
• Temperature: 280-300?F/138-149?C
• Pressure: Medium
• Peel: Warm or Cold
• Two-Color: Tack background for 2 seconds, peel warm, place foreground on top, 8 seconds.

High Tack Application Instructions

• Time: 8-12 Seconds
• Temp: 280-300?F/138-149?C
• Pressure: Medium
• Peel: Hot
• Two-Color: 5 seconds, peel hot, next layer 5 seconds, peel hot, cover again, heat apply for 5 seconds.

Heated Lower Platen – 100% Polyester

• Time: 10 seconds
• Upper: 270?F
• Lower: 320?F
• Pressure: 60 psi (#6/Medium on Hotronix)
• Peel: Warm for Low Tack; Hot for High Tack

Heated Lower Platen – 95% Polyester / 5% Spandex / Triblends

• Time: 30 seconds
• Upper: 270?F
• Lower: 290?F
• Pressure: 60 psi (#6/Medium on Hotronix).

Hotronix? 360 IQ? Hat Press (High Tack Only)

• Time: 45 seconds
• Upper: 280?F
• Lower: 320?F
• Pressure: Medium
• Peel: Warm/Cold
• Cover Sheet: 1/8″ Foam Pad

Material/Fabric Compatibility

• 100% Cotton
• 100% Polyester
• 100% Preshrunk Cotton
• Cotton/Poly Blends
• Lycra?/Spandex Blends

Cutter Guidelines

Cutter?????????? ?????? Blade?????? Force??????? Offset??????? Speed
Graphtec ??????????? 45????????????? 9-11???????????? 0????????????????? 20cm/s
Roland GS-24 ?? 45????????????? 90-110g??????.25?????????????? 20cm/s

Care Instructions

Machine wash inside-out using mild detergent. Do not use bleach. Dry at a normal dryer setting on household machines. Do not dry clean.

Storage

Store in a cool and dry area around 65 to 70 degrees Fahrenheit with 50% relative humidity. Keep away from direct heat, sunlight, and humidity. Recommended shelf life is one year.

Special Notes:

Stahls recommends setting your heat press at 280? when heat printing on sensitive fabrics, such as polyester.

Power Platen is not recommended for use with 100% cotton fabrics. For blends with high cotton content proceed with caution. Test application using upper heat only, if it scorches test using lower heat. Decrease pressure for smaller Power Platen sizes.
