CAD COLOR FoilTEK Vinyl

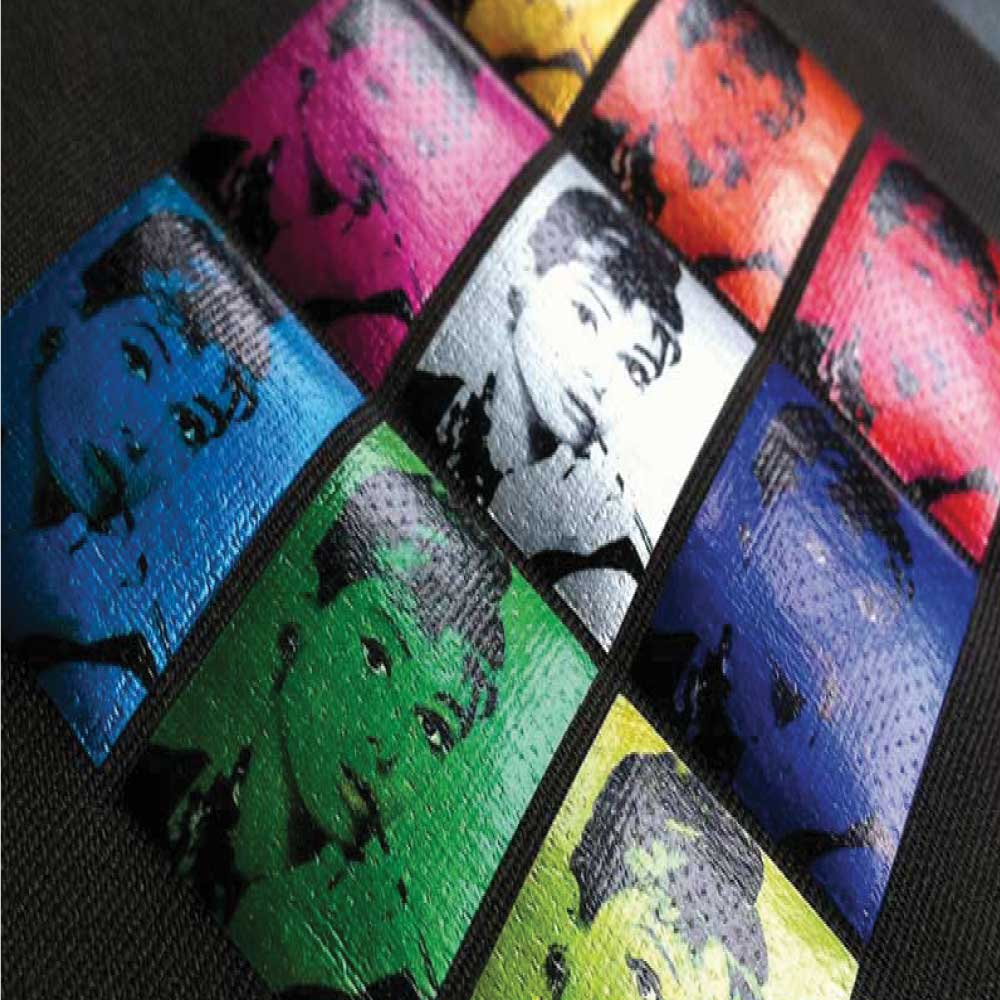

CAD COLOR FoilTEK Vinyl to its TEK series of printable heat transfer materials. Colors include gold, silver, and white metallic, and silver and gold shift. The material features four-way stretch and rebound, making it ideal for decorating high-performance sportswear, according to the company, and features Stahls? patented STiX2 adhesive.
Recommended Fabrics
- Cotton
- Polyester
- Lycra? / Spandex
- Nylon
- Cordura?
- Leather
- Neoprene
Download low res image
Download all images As a zip
Download printing instruction As a pdf
Customize Quotation Sheet
- Description
- Application Instructions
- Packaging Details
Description
Stahls? CAD COLOR Foil TEK Vinyl
Color in CAD To its TEK range of printable heat transfer materials, Foil TEK Vinyl. Silver and gold shift as well as gold, silver, and white metallic are among the colors. According to the business, the fabric has a four-way stretch, rebound, and Stahls’ unique STiX2 adhesive, making it perfect for embellishing high-performance sportswear.
Recommended Fabrics
- Cotton
- Polyester
- Lycra? / Spandex
- Nylon
- Cardura?
- Leather
- Neoprene
because the textile business uses a variety of textiles, weaves, coatings, and dyes.
- Accessories Required
- Kraft Paper Cover Sheet
- EZ Weeder? or Tweezers
- Solutions Mask
- Cutting Notes
For detailed designs
Premium Blade is recommended
You guarantee optimum blade depth when cutting, be sure to make test cuts.
Cutting too deeply will make it harder to weed or apply to the mask.
Care Instructions
The garment should be turned inside out for the best effects. Using a moderate detergent, do a warm or cold machine wash. Don’t use bleach. Avoid ironing a transfer immediately. low-temperature tumble dry. Avoid dry cleaning.
Storage
Return the masking to the paper backing if the designs won’t be heat applied right away. Avert humid environments and sharp temperature swings.
- Inks
- Solvent
- Eco-Solvent
- Application Range
300?F is the typical application temperature.
Heat-sensitive materials can have the temperature lowered by up to 20 degrees.
APPLICATION INSTRUCTIONS FOR
CAD COLOR PRINTABLE HEAT TRANSFER MATERIAL
FEED MATERIAL into plotter/cutter so that the media faces up
PRINT DESIGN in positive form.
CUT DESIGN If cutting through ink, let the print dry for 30 minutes otherwise you may cut immediately. Dry times may vary. Mask the material.
PRINT DESIGN in positive form. WEED away the excess media. If the design was cut immediately, the print must dry 30-60 minutes before proceeding.
PLACE MASK over the graphic, making sure to smooth out any air bubbles. REMOVE BACKING.
PREHEAT & POSITION Preheat the garment for 10 seconds, prior to application. Position & place the cover sheet over the graphic.
HEAT APPLY Temp: 280-300?F; 138-150?C Time: 5 seconds Pressure: medium #6 on Hotronix? Tip: A Heat Printing Pillow or Print Perfect Pad is recommended for even pressure when working around zippers, buttons, heavy seams or mesh reversible jerseys.
PEEL MASK WARM?
FINAL APPLICATION? Place the cover sheet over the graphic and reseal for 5 seconds.
CUTTER GUIDELINES
CUTTER | BLADE | FORCE | OFFSET | SPEED
Roland SP-300 | 45? |? 80-90g | .25 | 30cm/s
Roland VP-300 | 45? | 80-90g | .25 | 30cm/s
Roland XC-540 | 45? | 80-90g | .25 | 30cm/s
Roland GX-24? | 45? |? 80-90g | .25 | 30cm/s
Additional information
Dimensions | 50 × 100 cm |
---|---|
HTM-FT | Gold, Silver, White |
HS Code | 82022000 |
Country of Origin | USA |
