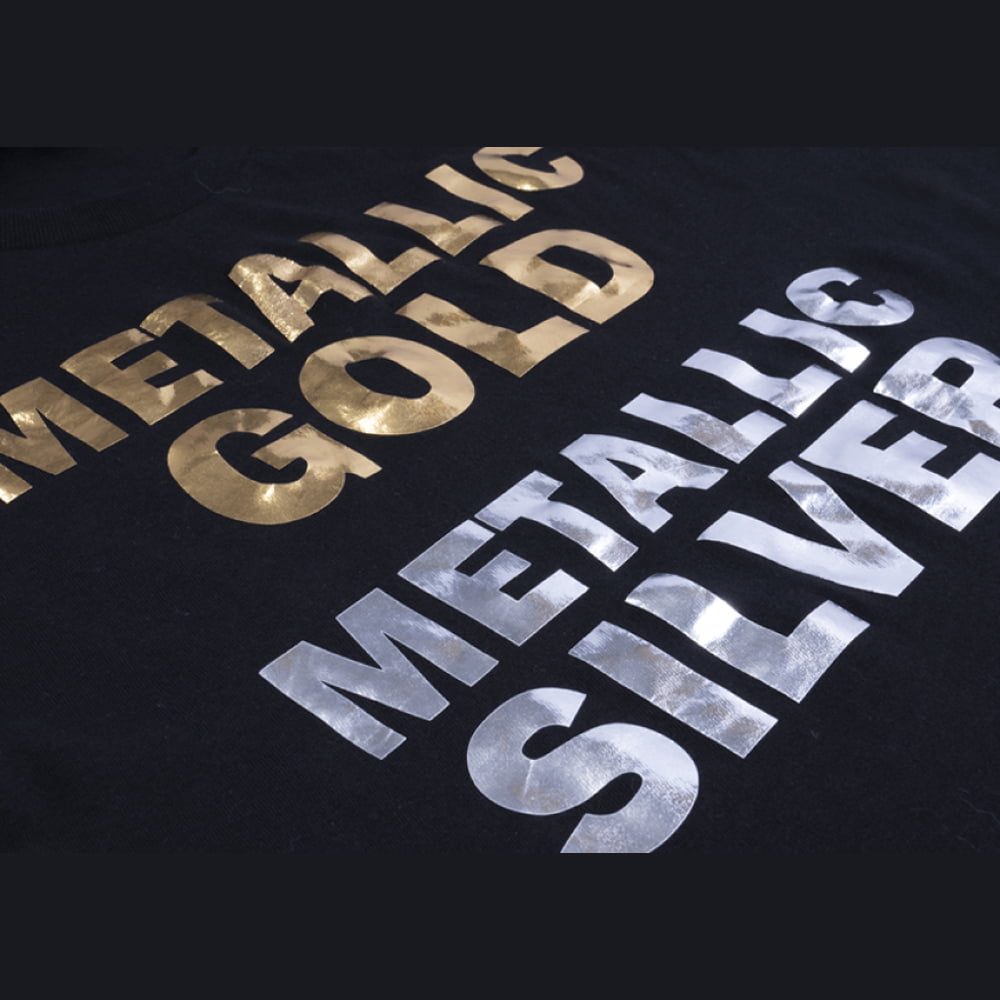

Metallic Premium Plus Vinyl Printing Sample

Premium Plus Heat Transfer Vinyls 25 Mtrs Rolls

0 out of 5

With superior stretch and rebound, Premium Plus Vinyls was designed to keep up with the most strenuous movements while retaining its original shape. This low-temp material is the ideal choice when decorating heat-sensitive performance wear, and once the heat is applied has an extremely soft and lightweight feel.

Thin, soft & durable
Silky matte finish
25 Mtrs Vinyl Rolls
Choose low tack for larger designs
Choose high tack for detailed designs

SKU: HTM-MT-PP Category: Heat Transfer Vinyls

Download high res image
Download low res image
Download all images As a zip
Download printing instruction As a pdf

To access this section, first Register and then log in

Print Proof
Client Email Address* Separate multiple e-mail addresses with a comma.
Add Message (Maximum 30000 characters)
Your Name

Customize Quotation Sheet

To access this section, first register and then log in

Subject:
Text:

To access this section, first Register and then log in

Color	Clear

Description
Application Instructions
Packaging Details

Description

CAD-CUT Premium Plus Heat Transfer Vinyls

With superior stretch and rebound, Premium Plus Vinyls was designed to keep up with the most strenuous movements while retaining its original shape. This low-temp material is the ideal choice when decorating heat-sensitive performance wear, and once the heat is applied has an extremely soft and lightweight feel.

Material Specifications

Composition: Polyurethane (PU)
Carrier: Frosted, Pressure-Sensitive
Low Tack Thickness: 80-108 microns/.080-108mm
High Tack Thickness: 92 microns/.092mm
Stretch & Rebound: 5
Washability: 50
Safety: Low Tack CPSIA Certified, High Tack CPSIA Certified
Laser cutter compatible

HD Video: How to Heat Press Metallic Premium Plus Vinyl | SKU: HTM-MT-PP

Low Tack Application Instructions

Time: 8-12 Seconds
Temperature: 280-300?F/138-149?C
Pressure: Medium
Peel: Warm or Cold
Two-Color: Tack background for 2 seconds, peel warm, place foreground on top, 8 seconds.

High Tack Application Instructions

Time: 8-12 Seconds
Temp: 280-300?F/138-149?C
Pressure: Medium
Peel: Hot
Two-Color: 5 seconds, peel hot, next layer 5 seconds, peel hot, cover again, heat apply for 5 seconds.

Heated Lower Platen – 100% Polyester

Time: 10 seconds
Upper: 270?F
Lower: 320?F
Pressure: 60 psi (#6/Medium on Hotronix)
Peel: Warm for Low Tack; Hot for High Tack

Heated Lower Platen – 95% Polyester / 5% Spandex / Triblends

Time: 30 seconds
Upper: 270?F
Lower: 290?F
Pressure: 60 psi (#6/Medium on Hotronix).

Hotronix? 360 IQ? Hat Press (High Tack Only)

Time: 45 seconds
Upper: 280?F
Lower: 320?F
Pressure: Medium
Peel: Warm/Cold
Cover Sheet: 1/8″ Foam Pad

Material/Fabric Compatibility

100% Cotton
100% Polyester
100% Preshrunk Cotton
Cotton/Poly Blends
Lycra?/Spandex Blends

Cutter Guidelines

Cutter?????????? ?????? Blade?????? Force??????? Offset??????? Speed
Graphtec ??????????? 45????????????? 9-11???????????? 0????????????????? 20cm/s
Roland GS-24 ?? 45????????????? 90-110g??????.25?????????????? 20cm/s

Care Instructions

Machine wash inside-out using mild detergent. Do not use bleach. Dry at a normal dryer setting on household machines. Do not dry clean.

Storage

Store in a cool and dry area around 65 to 70 degrees Fahrenheit with 50% relative humidity. Keep away from direct heat, sunlight, and humidity. Recommended shelf life is one year.

Special Notes:

Stahls recommends setting your heat press at 280? when heat printing on sensitive fabrics, such as polyester.

Power Platen is not recommended for use with 100% cotton fabrics. For blends with high cotton content proceed with caution. Test application using upper heat only, if it scorches test using lower heat. Decrease pressure for smaller Power Platen sizes.
