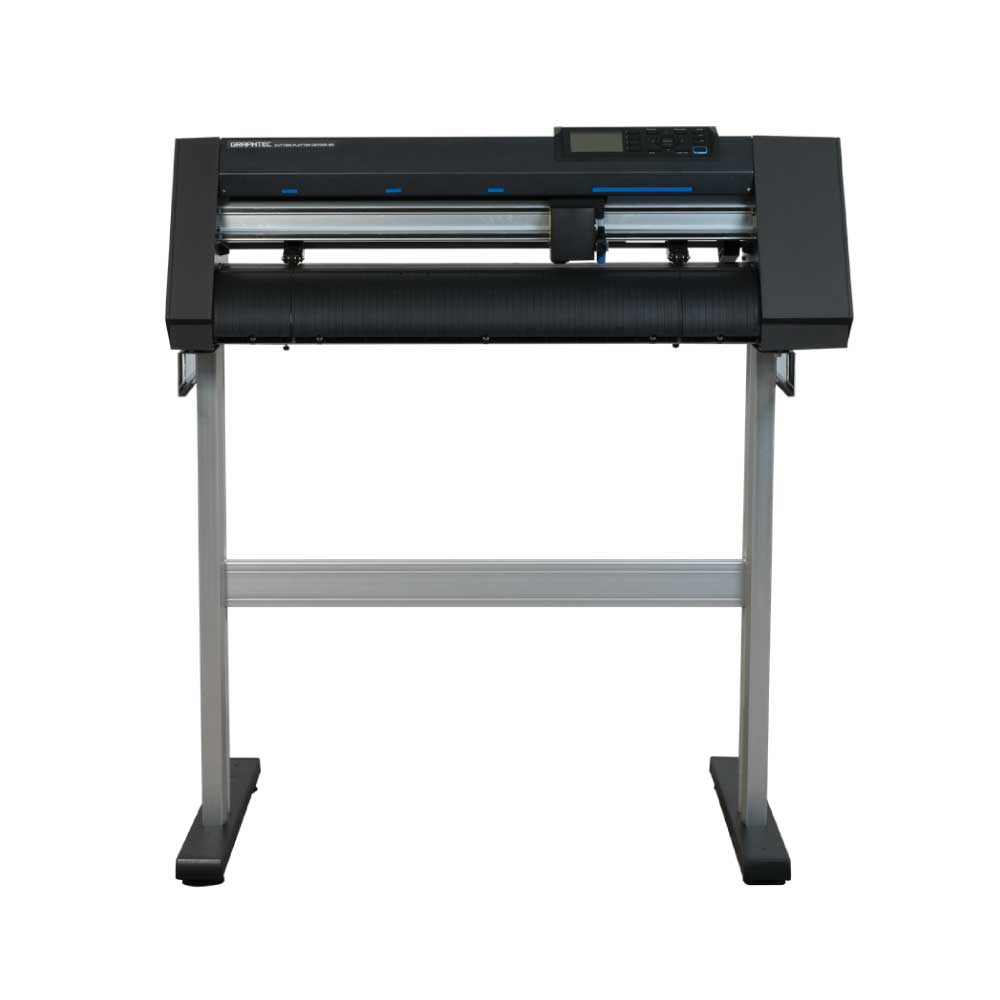

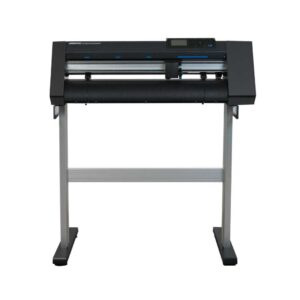

GRAPHTEC Cutting Plotter CE7000-40

0 out of 5

The Graphtec Cutting Plotter CE7000-40 series sets the standard for high-performance, low-cost cutting plotters. It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE7000 series improve your work efficiency and increase productivity.

  • Auto Registration Mark Sensor
  • Fast & Accurate Digital Servo Motor
  • 4 Point, Dual-Axis Skew Correction
  • Tangential control enhanced precision
  • Max. cutting speed: 35? per second at 45? direction
  • Compatible OS (*4): Windows 10/8.1/7 Mac OS X 10.6 ~ 10.11 / macOS 10.12 ~ 10.15 (Graphtec Studio: 10.6 – 10.15, Cutting Master 4: 10.7 – 10.15)
  • Supporting software: Graphtec Pro Studio(Windows)(*6), Graphtec Studio(Mac), Cutting Master 4(*6), Windows Driver
Availability: Out of stock SKU: VCP-004-S Category:
 Download high res image
 Download low res image
  Download all images As a zip
  Download printing instruction As a pdf
To access this section, first Register and then log in
Print Proof

  Customize Quotation Sheet
To access this section, first register and then log in
To access this section, first Register and then log in

Description

Graphtec Cutting Plotter CE7000-40

Cutting plotters with great performance and low cost are standardized by the Graphtec Cutting Plotter CE7000-40 series. It has high-end functionality for professionals, like registration mark sensing and perforation cutting for creating a dividing line of labels or packing mock-ups. The CE7000 series’ cutting-edge features promote productivity and job efficiency.

  • Fast & Accurate Digital Servo Motor 4 Point, Dual-Axis Skew Correction with Auto Registration Mark Sensor
  • Tangential control increased accuracy
  • 35″ per second maximum cutting speed in a 45? direction
  • Oss compatibility (*4): Windows 10 8.1 7 macOS 10.12 to 10.15 and Mac OS X 10.6 to 10.11 (Graphtec Studio: 10.6 – 10.15, Cutting Master 4: 10.7 – 10.15)
  • Supporting software includes Cutting Master 4 (*6), Windows Driver, Graphtec Pro Studio (Windows) (*6), and Graphtec Studio (Mac).

Cutting performance that ensures precise cutting of 5m. (*2)

The media stocker aids in regulating the media stream. Media doesn’t float when the center push roller’s pressure is adjusted to the media on three levels.
Additionally, stability in long cuts can be achieved by employing an optional special basket.

Data output without a PC using USB flash memory

Cutting data created using Cutting Master 4 or Graphtec Pro Studio / Plus can be output straight to the cutting plotter by plugging in USB flash memory. Users can work without a computer thanks to this streamlined procedure.

Please take note that NTFS and exFAT are not supported by the USB memory format, which only supports FAT32.

Continuous Cut

  • By recognizing the “Start Mark” of a new barcode, barcode data management enables cutting various data in a sequential manner. Roll-media sequential print and cut processes are now available.

Supports colored marks/specialty media

  • Due to advancements in the ARMS sensor algorithm, a wide range of media types, including holographic paper and reflecting sheets, are now compatible. Certain combinations of specialty media and colored marks could be difficult for seniors to read.
