Description

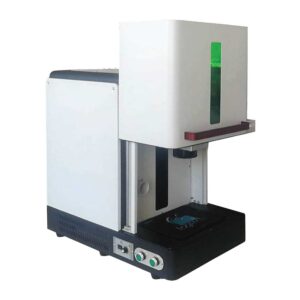

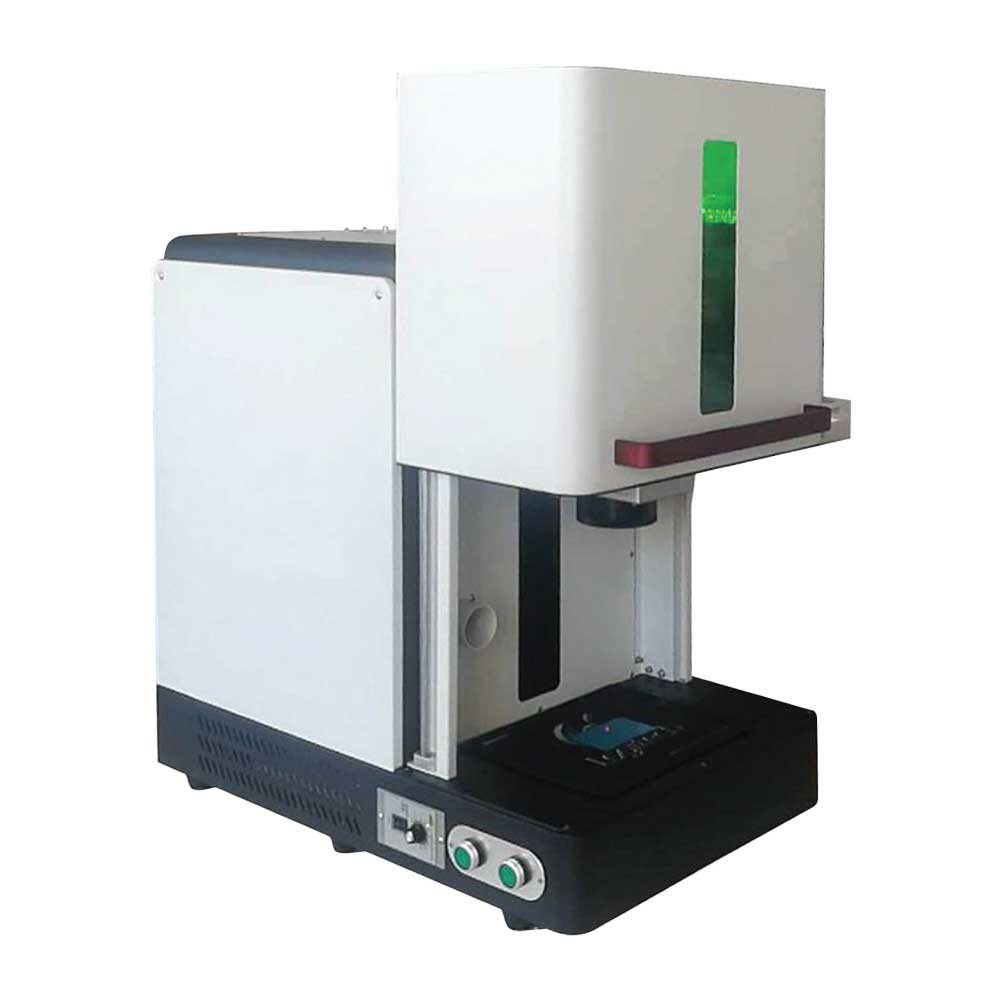

Laser Marking Machine FL-03 – Enclosed Model

20W Fiber Laser Marking Machine FL-03 with a 70x70mm lens, a shielding window, and a D69mm rotary axis enclosure type engraving machine.

• 20W laser power. Area for Marking: 70×70 mm. 1.2 mm for engraving depth
• JPT LP-E Lasers, kind of laser.
• Repeated every 1 to 600 kHz.
• BJ JCZ board, the control panel (Original)
• Software: EZCAD 2 has dependable and stable performance.
• Suitable for Windows XP, Vista, 7, 8, and 10
• Settings: Observation Window;
• Sino-Galvo Scanning Head Galvanometer, JollyStar Lens, and EZCAD2.0 Software support formats such as PLT, BMP, DXF, JPG, TIF, AI, PNG, and JPG.
• The marking speed can reach 7 m/s thanks to an imported laser scanning system; the repositioning precision is 0.002 mm; and the electrical-optical conversion rate can reach 70%.
  marking on a variety of metals, including copper, brass, aluminum, and stainless steel. Several non-metals are also available, including nylon, light buttons, ABS, PVC, PES, PBT, silicon, polymer, and others.

Parameters

• Marking Area:70 mm x 70 mm
• BJ JCZ board, the control panel (Original)
• EZCAD2 (compatible with Windows XP/Vista/7/8/10) is a software program.
• Type of Laser: JPT LP-E
• Repeated at: 1-600 kHz
• 200 ns for the pulse
• Range of output power adjustment: 10% to 100%
• Speed of Marking: 7 m/s (275.6 in/s)
• 1mm Engraving Depth (0.039in)
• Consumption of power: 1000W
• TCP/IP, IO, and RS232 Communication Modes for Automation
• 110V?240V, 50?60Hz electrical requirements (According to local electricity supply).
• USB connection is used.
• Suitable for Windows XP, Vista, 7, 8, and 10
• Rotary Axis D69mm ?
• 2-83mm internal clamping range
• 11-91mm External Clamping Range

Advantages

1. Deep Engraving on Metal
2. Processing of Metal Surfaces and High-Frequency Lines
3. Software files from CorelDraw, AutoCAD, and Photoshop, as well as PLT, PCX, DXF, and BMP, among others, may be compatible with the machine.
4. Carbon steel, aluminum, stainless steel, brass, copper, gold, and silver are among the materials that can be used. There are also several non-metals, including nylon, light buttons, ABS, PVC, and PES.
5. Simply check to see if the red dots and red lines on the surface of the object you want to mark with the focus finder overlap to rapidly determine the focal length without using a ruler.

Additional information

Enclosure Type JPT LP-E 50W Fiber Laser Engraver with 70*70mm Lens + shielding window + D69mm Rotary Axis

Parameters

• Marking Area:70?70mm
• Control board: BJ JCZ board(Original)
• Software Program: EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
• Laser Type: JPT LP-E
• Repetition Rate:1-600kHZ
• Pulse Duration: 200ns
• Output power adjustment range:10%-100%
• Marking Speed:?7m/s(275.6in/s)
• Engraving Depth:?1mm(0.039in)
• Power consumption: 1000W
• Communication Mode for Automation TCP/IP, IO, RS232
• Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).
• Connection?USB Connection.Compatible with Windows XP/Vista/7/8/10.
• D69mm Rotary Axis—Internal Clamping Range:2-83mm.External Clamping Range:11-91mm

Advantages

• Metal Deep Engraving
• Metal Surface Processing
• High-Frequency Line Processing
• The machine can be compatible with software files such as CorelDraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc supported.
• Applicable Materials: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper, Gold, Silver, etc. Also some nonmetals such as nylon, light button, ABS, PVC, PES, etc.
• The focus finder can quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.
